Marine LED
Fishing Lights.
Built around the realities
of offshore operation.
Every critical design choice serves a measurable job: move heat, control the beam, resist the marine environment, and reduce retrofit friction.

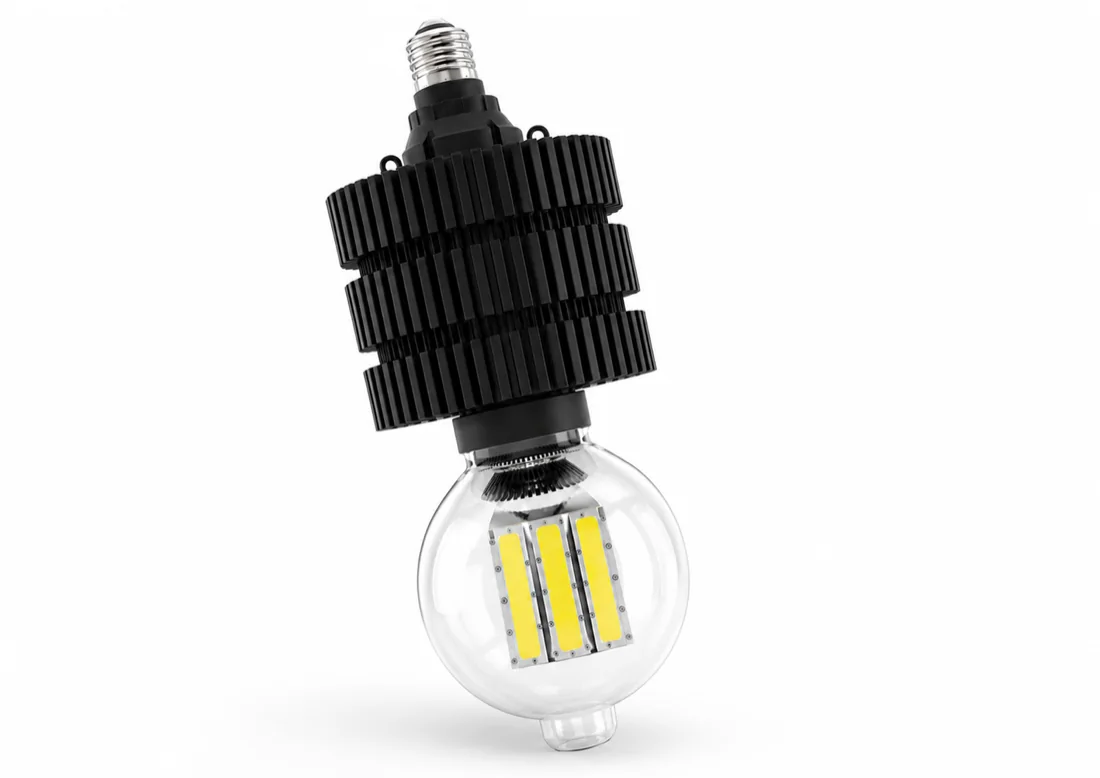

Integrated thermal management
High-density finning and a direct thermal path improve heat exchange by conduction, radiation, and convection.
Efficient optical delivery
Rated 140-145 lm/W with a 119° beam. Tested 500W and 800W configurations reached 169.18 and 172.25 lm/W.
Marine protection
IP67 protection, corrosion measures, coated metal surfaces, and UV-aging verification for demanding deck environments.
Batch-level verification
Ingress, electrical, optical, appearance, labeling, and final pre-shipment inspection.
Choose by vessel electrical system, replacement target, and required output. Final configuration is confirmed by engineering.
The adjustable E39/E40 base is designed for compatible vertical lamp holders. Replace the legacy ballast with a matched constant-current LED driver, secure the lamp, then aim the beam.
01 Remove legacy lamp 02 Install matched driver
03 Secure E39/E40 base 04 Adjust beam direction
Compare Fishing Light Specifications.
| Specification | ABY-500 | ABY-600 | ABY-800 | ABY-1000 |
|---|---|---|---|---|
| Rated power | 500W | 600W | 800W | 1000W |
| AC input voltage | 140-300 VAC | 160-300 VAC | 116-277 VAC | 330-430 VAC |
| Driver output | 140-240 VDC | 140-220 VDC | 140-220 VDC | 240-340 VDC |
| Rated efficacy | 145 lm/W | 145 lm/W | 145 lm/W | 140 lm/W |
| Beam angle | 119° | 119° | 119° | 119° |
| Weight | 2.2 kg | 2.8 kg | 3.3 kg | 3.2 kg |
| Dimensions | 520 x 230 mm | 520 x 230 mm | 580 x 240 mm | 580 x 240 mm |
| Power factor | 0.95 | 0.95 | 0.95 | 0.95 |
Rated values are configuration references from the supplied technical materials. Final voltage, photometrics, compliance files, and production tolerances are confirmed against the signed project specification.
From optical targets to export packaging, abylure turns a platform product into a documented, production-ready program for distributors, vessel builders, and marine integrators.
Power & electrical
500W / 600W / 800W / 1000W platforms, matched constant-current drivers, and project-specific input evaluation.
Spectrum & optics
Tested 4000K and 6200K configurations, project-tuned CCT or spectrum, and beam-distribution evaluation.
Mechanical interface
E39/E40 adjustable base, directional setup, housing finish, label, manual, carton, and branded packaging.
MOQ & pilot runs
MOQ is project-dependent. Sample validation and pilot batches are available after engineering review.
Evidence before shipment.
Quality is treated as a documented sequence, not a last-minute inspection.
Incoming inspection
LED, housing, driver, glass, fasteners
Driver matching
Input range, current, PF, protection
Assembly control
Thermal path, torque, sealing
Optical verification
Flux, efficacy, beam, CCT
Environmental testing
Water ingress, UV aging, corrosion
Final QA & packing
Appearance, function, label, documents
Specify for the vessel,
not the brochure.
Standard products are above-water fishing lights. Adjacent marine uses are reviewed as engineering projects against electrical, optical, mounting, and environmental requirements.

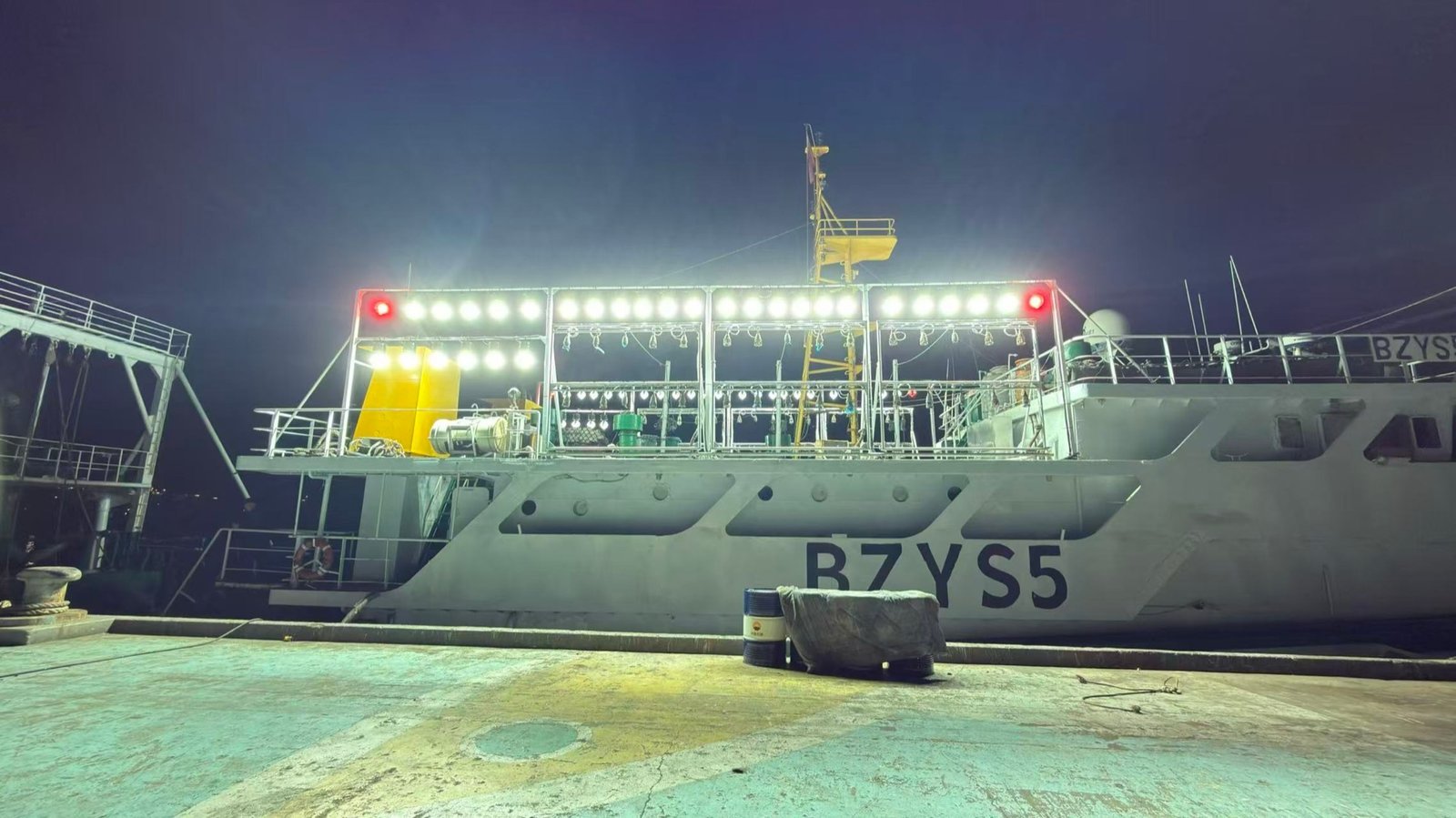

Broad deck-side arrays with high-output retrofit economics and directional adjustment.
Power-class selection and beam planning for larger working decks and aggregation zones.
Marine research
Project-specific spectrum, driver, data, and optical validation for experimental programs.
Yachts & docks
Custom-engineered work-light applications subject to mounting and compliance review.
Bring us the vessel.
We'll engineer the light.
Share your electrical system, current lamp setup, target species or use case, and purchase quantity. We will respond with the right configuration questions.
Engineering response target: within one business day.
